PiSugar 3 Plus Portable 5000 mAh UPS Lithium Battery Power Module Platform for Every Raspberry Pi 3B/3B+/4B Model Accessories handhold(Not Include Raspberry Pi)

Price: $49.99
(as of Feb 03, 2025 22:43:49 UTC – Details)

     Product Description










                                                     <img alt="pisugar" src="https://images-na.ssl-images-amazon.com/images/G/01/x-locale/common/grey-pixel.gif" class="a-lazy-loaded" data-src="https://www.beingshivam.com/wp-content/uploads/2025/02/1738622627_485_PiSugar-3-Plus-Portable-5000-mAh-UPS-Lithium-Battery-Power.png"><img alt="pisugar" src="https://www.beingshivam.com/wp-content/uploads/2025/02/1738622627_485_PiSugar-3-Plus-Portable-5000-mAh-UPS-Lithium-Battery-Power.png">


                                                           We are a geek team of Raspberry Pi lovers. In order to maximize the portability of Raspberry Pi and help developers create more complete products, we launched PiSugar.PiSugar has launched three series on the basis of one generation: PiSugar 2 series, PiSugar 3 series, PiSugar S series. Each series has two models: 1200mAh (designed for Pi zer series) and 5000mAh (designed for most Raspberry Pi models). </p>





                                      <img alt="pisuagr 3 plus" src="https://images-na.ssl-images-amazon.com/images/G/01/x-locale/common/grey-pixel.gif" class="a-lazy-loaded" data-src="https://www.beingshivam.com/wp-content/uploads/2025/02/1738622627_177_PiSugar-3-Plus-Portable-5000-mAh-UPS-Lithium-Battery-Power.jpg"><img alt="pisuagr 3 plus" src="https://www.beingshivam.com/wp-content/uploads/2025/02/1738622627_177_PiSugar-3-Plus-Portable-5000-mAh-UPS-Lithium-Battery-Power.jpg">

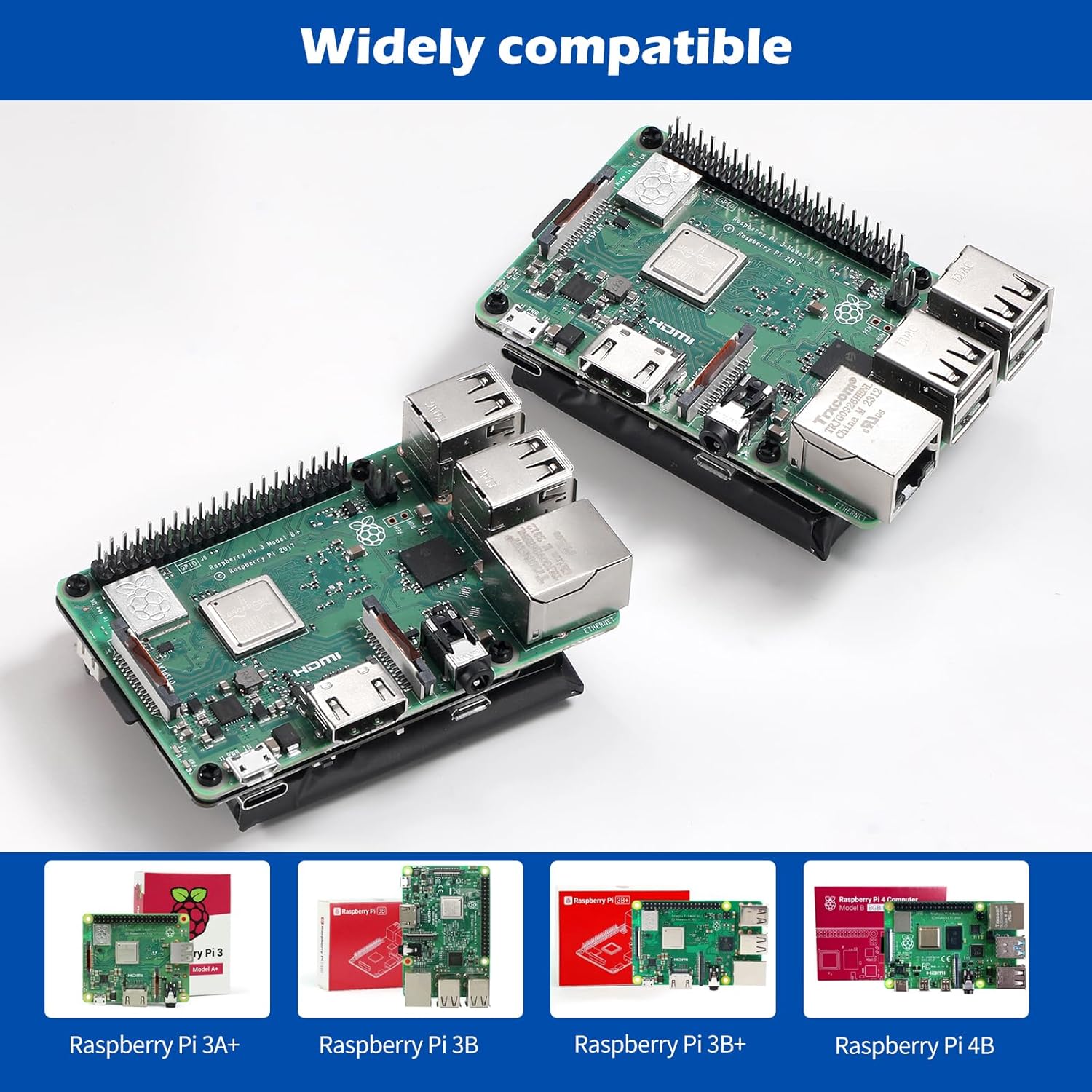

                                               <h3 class="a-spacing-mini"> PiSugar 3 Plus for Raspberry Pi 2/3A+/3B/3B+/4B </h3>                                      <p> PiSugar 3 5000mAh continues the pogo pin design of PiSugar 2 series, which is easy to install. On the basis of retaining the on-board RTC, WEBUI and other functions, the new design has added many new functions, and strengthened the compatibility with devices. </p>     <p> PiSugar 3 uses independent MCU control for communication and functions, and only one simple command is needed to upgrade the device firmware without any additional equipment. </p>









        <p class="apm-text-center">
                                          <img alt="watchdog" src="https://images-na.ssl-images-amazon.com/images/G/01/x-locale/common/grey-pixel.gif" class="a-spacing-mini a-lazy-loaded" data-src="https://www.beingshivam.com/wp-content/uploads/2025/02/1738622627_168_PiSugar-3-Plus-Portable-5000-mAh-UPS-Lithium-Battery-Power.png"><img alt="watchdog" src="https://www.beingshivam.com/wp-content/uploads/2025/02/1738622627_168_PiSugar-3-Plus-Portable-5000-mAh-UPS-Lithium-Battery-Power.png">
                                                Software WatchDog                                        When the function is turned on, it is necessary to manually operate the software to "feed the dog" regularly, which can effectively prevent the Raspberry Pi from cashing and enhance the reliability of the system. </p>

        <p class="apm-text-center">
                                          <img alt="upgrade" src="https://images-na.ssl-images-amazon.com/images/G/01/x-locale/common/grey-pixel.gif" class="a-spacing-mini a-lazy-loaded" data-src="https://www.beingshivam.com/wp-content/uploads/2025/02/1738622627_969_PiSugar-3-Plus-Portable-5000-mAh-UPS-Lithium-Battery-Power.png"><img alt="upgrade" src="https://www.beingshivam.com/wp-content/uploads/2025/02/1738622627_969_PiSugar-3-Plus-Portable-5000-mAh-UPS-Lithium-Battery-Power.png">
                                                Remote upgrade                                        The device firmware can be upgraded without any additional equipment. Only need a simple command to upgrade the firmware through the Raspberry Pi, enabling the device to acquire new capabilities at any time. </p>

        <p class="apm-text-center">
                                          <img alt="protection" src="https://images-na.ssl-images-amazon.com/images/G/01/x-locale/common/grey-pixel.gif" class="a-spacing-mini a-lazy-loaded" data-src="https://www.beingshivam.com/wp-content/uploads/2025/02/1738622628_925_PiSugar-3-Plus-Portable-5000-mAh-UPS-Lithium-Battery-Power.png"><img alt="protection" src="https://www.beingshivam.com/wp-content/uploads/2025/02/1738622628_925_PiSugar-3-Plus-Portable-5000-mAh-UPS-Lithium-Battery-Power.png">
                                                Hardware battery protection                                        PiSugar offers hardware battery protection for the first time, limiting battery voltage to around 80%. When charging protection is turned on, the number of battery cycles can be increased. Add overvoltage protection + overcurrent protection + undervoltage protection to protect the safety of Raspberry Pi and PiSugar. </p>









        <p class="apm-text-center">
                                          <img alt="PiSugar 3 Plus" src="https://images-na.ssl-images-amazon.com/images/G/01/x-locale/common/grey-pixel.gif" class="a-spacing-mini a-lazy-loaded" data-src="https://www.beingshivam.com/wp-content/uploads/2025/02/1738622628_628_PiSugar-3-Plus-Portable-5000-mAh-UPS-Lithium-Battery-Power.jpg"><img alt="PiSugar 3 Plus" src="https://www.beingshivam.com/wp-content/uploads/2025/02/1738622628_628_PiSugar-3-Plus-Portable-5000-mAh-UPS-Lithium-Battery-Power.jpg">
                                                Anti-Mistaken Touch Switch                                         Effectively avoid shutdown caused by accidental touch </p>

        <p class="apm-text-center">
                                          <img alt="3 plus" src="https://images-na.ssl-images-amazon.com/images/G/01/x-locale/common/grey-pixel.gif" class="a-spacing-mini a-lazy-loaded" data-src="https://www.beingshivam.com/wp-content/uploads/2025/02/1738622628_102_PiSugar-3-Plus-Portable-5000-mAh-UPS-Lithium-Battery-Power.jpg"><img alt="3 plus" src="https://www.beingshivam.com/wp-content/uploads/2025/02/1738622628_102_PiSugar-3-Plus-Portable-5000-mAh-UPS-Lithium-Battery-Power.jpg">

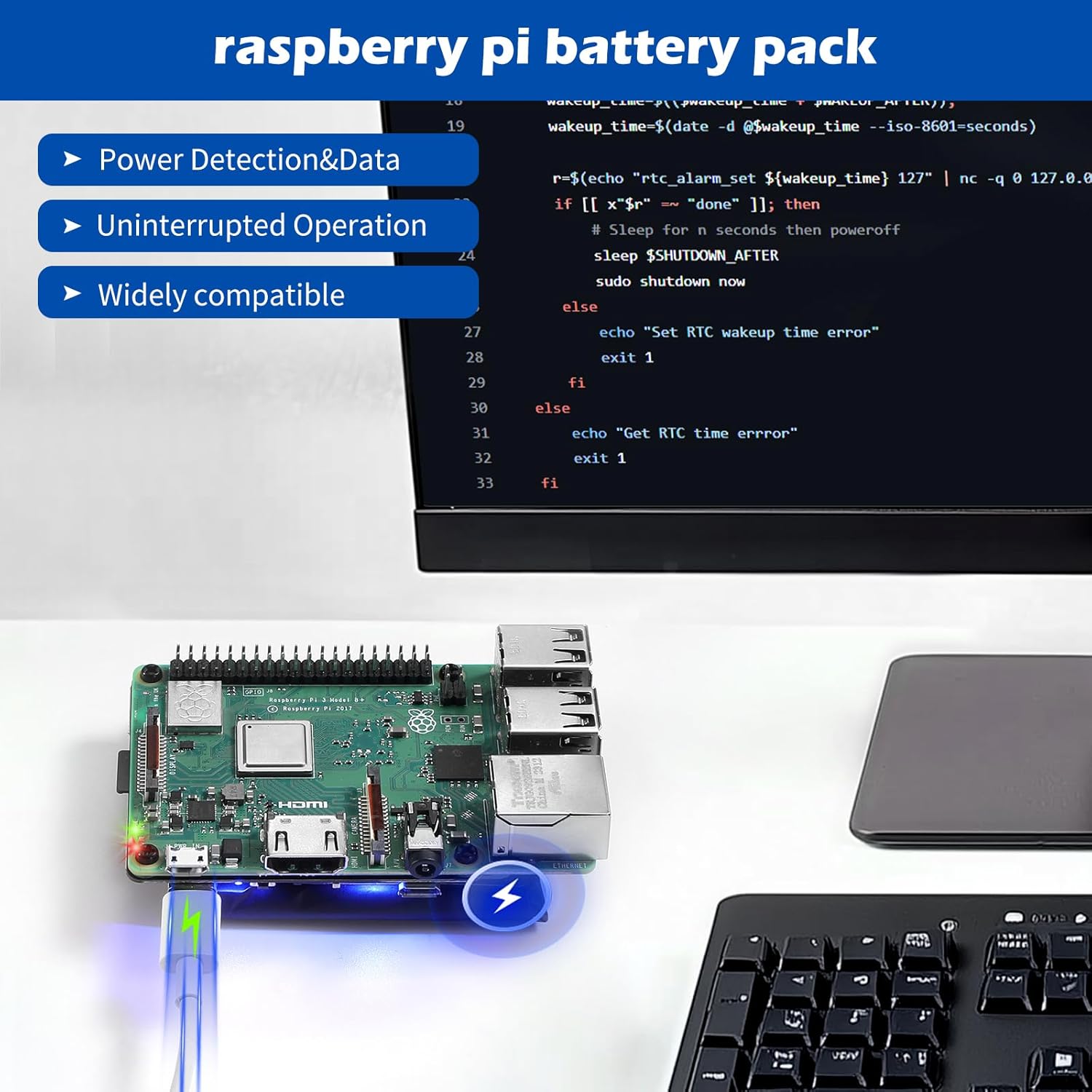

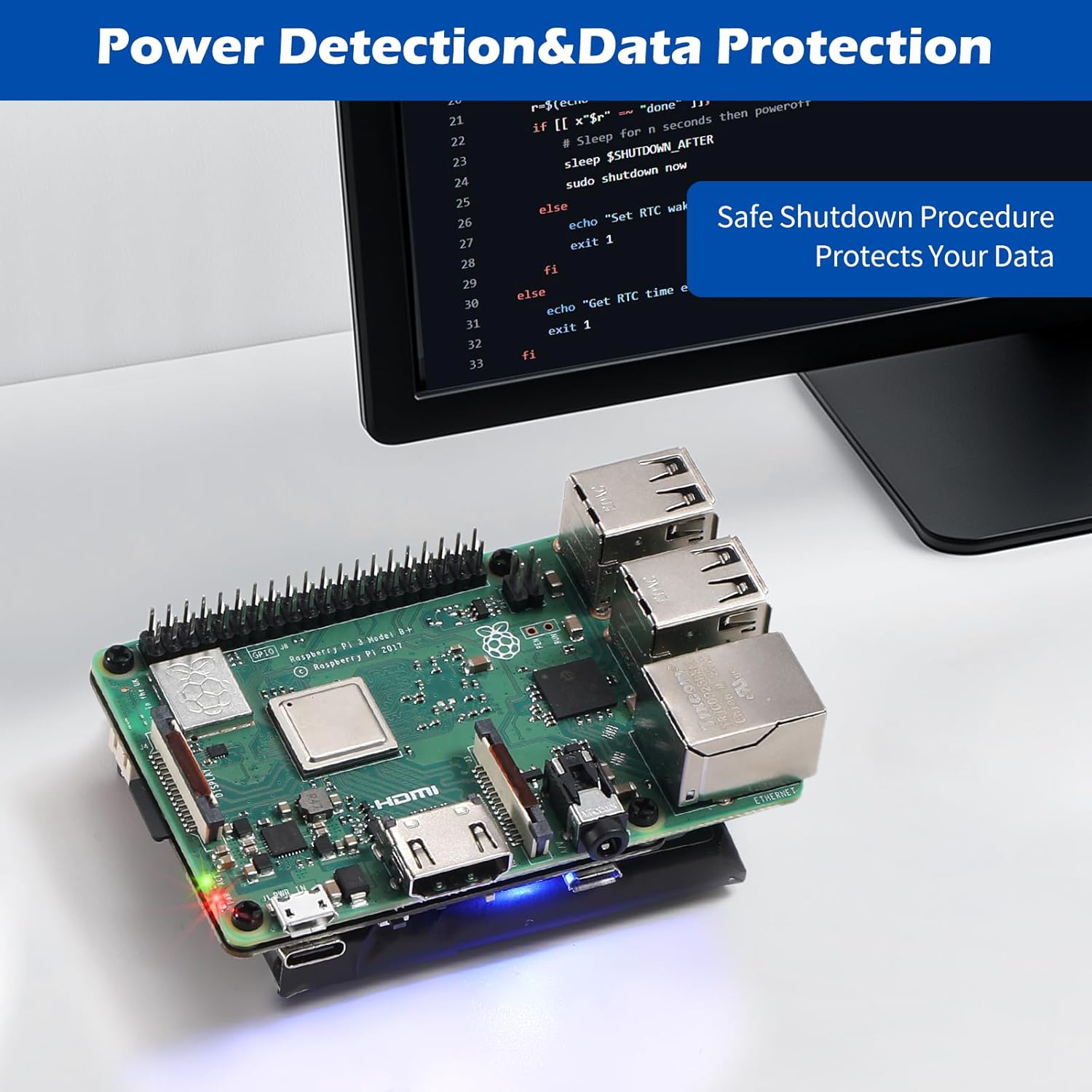

                                                Detect power conditions                                        No matter the external power supply is connected or disconnected, PiSugar will keep working to avoid data loss.PiSugar 3 can obtain whether the external power supply is supplying power, whether the external power supply is disconnected, and the battery voltage status through the data interface.The user can determine whether it is necessary to actively shut down to protect data, and can be set to automatically turn on when the external power supply is restored. Through the combination of the above functions, the project is safe and keeps running for as long as possible. </p>

        <p class="apm-text-center">
                                          <img alt="220X220" src="https://images-na.ssl-images-amazon.com/images/G/01/x-locale/common/grey-pixel.gif" class="a-spacing-mini a-lazy-loaded" data-src="https://www.beingshivam.com/wp-content/uploads/2025/02/PiSugar-3-Plus-Portable-5000-mAh-UPS-Lithium-Battery-Power.jpeg"><img alt="220X220" src="https://www.beingshivam.com/wp-content/uploads/2025/02/PiSugar-3-Plus-Portable-5000-mAh-UPS-Lithium-Battery-Power.jpeg">
                                                Customize I2C address                                       <p> PiSugar communicates with the Raspberry Pi through the I2C interface and is compatible with most I2C devices.In addition, the I2C communication address can be customized to avoid I2C address conflicts. </p>






                                                                                                                                                <h3 class="a-size-extra-large a-spacing-base a-text-center"> Electrical Specifications </h3>                                                        Input                                    5V-3Amax                                        Output                                    5V-3Amax                                        Battery capacity                                    5000mAh                                        Communication interface                                    I2C interface 0x57/0x68 address (can be set)

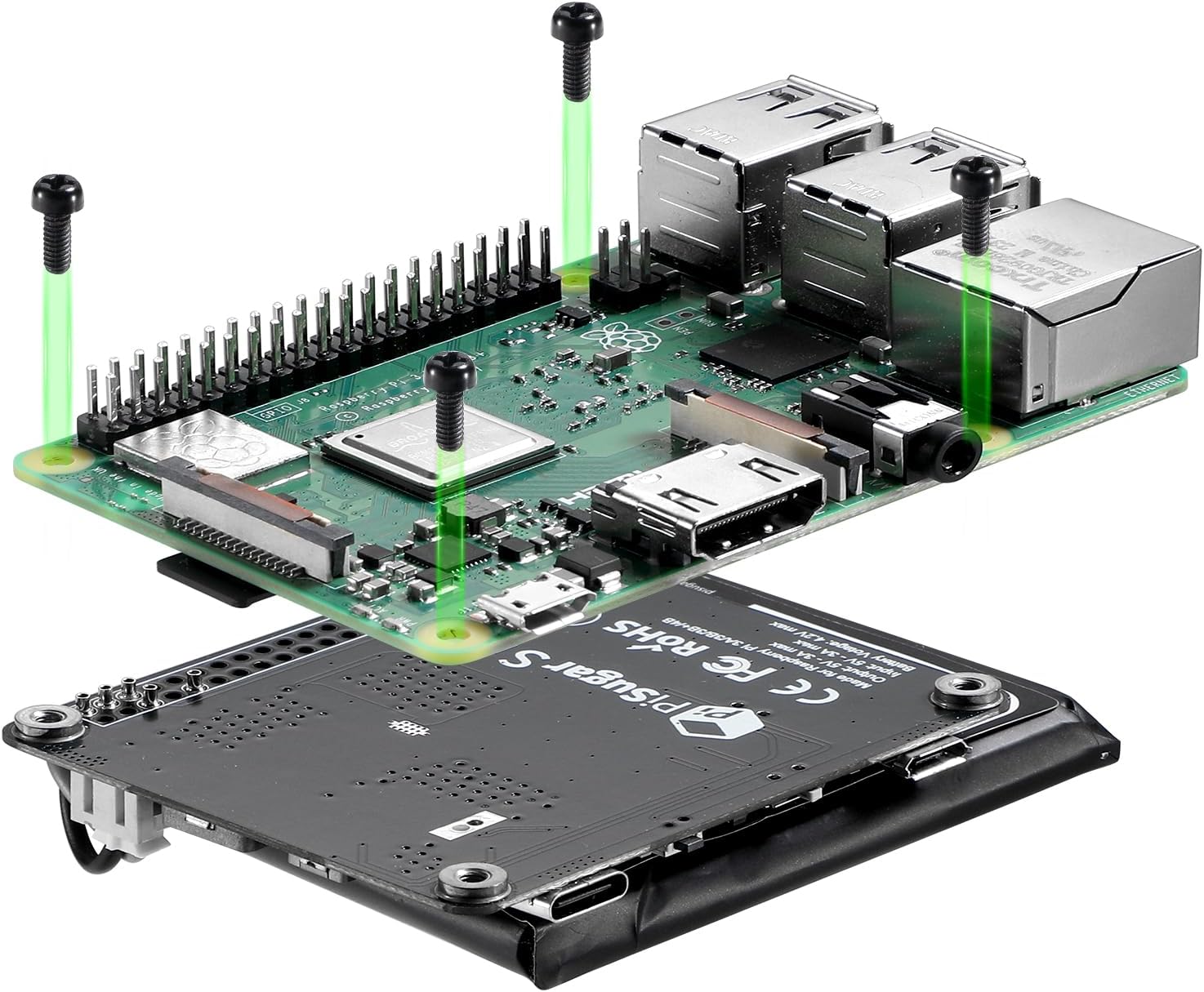

               <br>PiSugar 3 plus adds a software watchdog function. When the function is turned on, the dog needs to be kicked regularly, which can effectively prevent the Raspberry Pi from crashing and improve the reliability of the system.<br>PiSugar 3 plus provides hardware battery protection like never before, limiting battery voltage to nearly 80%. When charging protection is turned on, the battery cycles life can be improved.Set up quadruple overvoltage protection function, overcurrent protection function and undervoltage protection function to ensure the safety of the Raspberry Pi, PiSugar as well as the lithium battery.<br>PiSugar 3 plus continues to use the pogo pin design to connect with Raspberry Pi from the back. In this way, it does not occupy the GPIO, and is compatible with other GPIO devices.<br>PiSugar 3 plus has full UPS functions and can set up multiple awakening methods to meet various unique project needs.<br>PiSugar 3 plus communicates with the Raspberry Pi through the I2C interface and is compatible with most I2C devices. In addition, the I2C communication address can be customized to avoid I2C address conflicts.
