Price: $35.99
(as of Feb 02, 2025 12:24:34 UTC – Details)
Raspberry Pi 4 Battery Pack UPS
Raspberry Pi Battery USB Battery Pack
Raspberry Pi Latest Version V3P Expansion Board Power Supply Type-C for Raspberry 4B 3B+ 3B 2B+
Remarks:
UPSPack V3P is the latest model of a new generation of Raspberry Pi UPS uninterruptible power supply expansion board released in September 2020
According to previous iterations of V1 and V2 versions, V3P version is currently the most stable UPS power supply solution for Raspberry Pi
Description:
Please check the pictures carefully to understand the product differences between UPS V3P version and V2 version
You will like this latest version of UPS charging board. It has a smart switch function, and with a type-c interface, allowing you to easily connect with the Raspberry Pi 4B
Package Content:

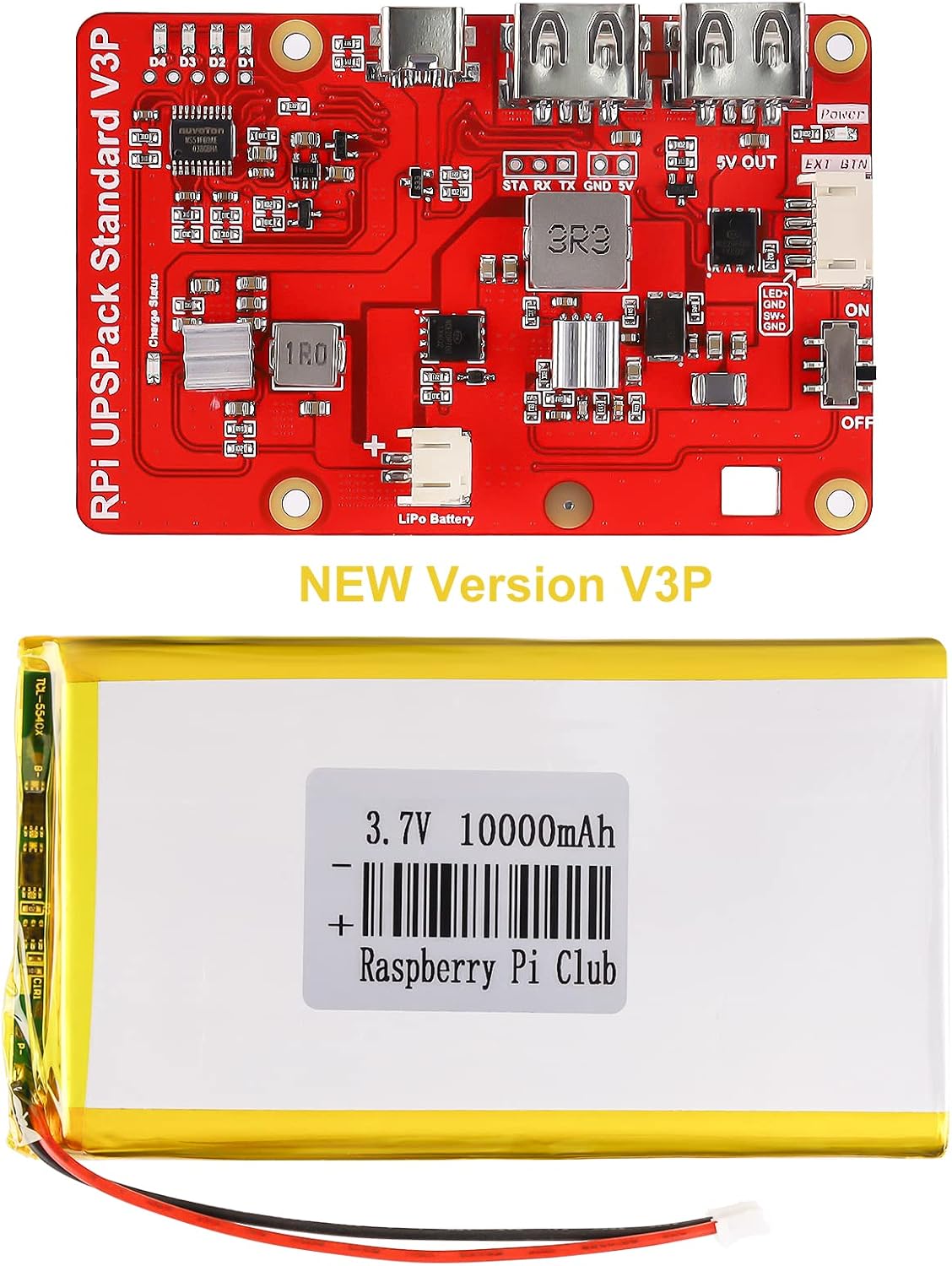

1 * Raspberry Pi UPS Pack Latest Version V3P
1 * 3.7V 10000mAh Lithium Battery
1 * Package to install screws
1 * 5pin 2.54mm head
Note: If you use UPS to power Raspberry Pi 3B/3B+ while charging, please make sure that the input power is not less than 2.5A. Recommended use: 3V 2.5A power supply
The link to the assembly video is available on the product page, Two power supply modes: outdoor portable type and indoor UPS power supply mode: 1) As an outdoor portable power supply, the main board is powered by a lithium battery. The maximum external power supply capacity is: 5.1V. 2.5A. 2) As an indoor UPS power supply mode: the UPS power supply interface is connected to an external 5V power supply, the power supply requires 5V 2A-3A, and the maximum output current can reach 5V 3A
4+2LED are designed to show the status of battery power, charge or discharge:1) 4 Battery power LEDs: Used to show the current battery voltage and power. 2)The function of the Power LED is to display whether the UPS is supplying power to the Pi, and the LED is on: it means the output is 5V. LED off: Indicates that there is no voltage at the output. 3) Charging indicator LED: When the UPS is externally charged via the TYPE-C USB interface, the Charge LED starts to work
The UPS has overcharge and overcurrent protection functions: When the UPS externally outputs about 4A, the UPS will consider the external circuit to be in a short-circuit state and automatically cut off the output. The lithium battery board that comes with the UPS has an overcharge and overdischarge protection board. Prevents the battery from being overcharged and overdischarged when the external circuit is abnormal, thereby reducing the possibility of damage to the battery
Two output modes: In addition to the regular output via the USB port, the V3P output interface adds an LC filter, the ripple is about 20mV under no-load condition, and the ripple is about 50mV when Raspberry Pi 4 is connected
Customers find the single board computer a good value for money. They are satisfied with the build quality and functionality, but some dislike the led light. Opinions vary on battery life, installation, charging capability, and power source.
AI-generated from the text of customer reviews
